TMT-2500 Platform Trailer

1800 kg load capacity 1800 kg load capacity 250 x 125 cm bed 250 x 125 cm bed Electric hydraulic lift Electric hydraulic lift CE and ISO 9001 CE and ISO 9001

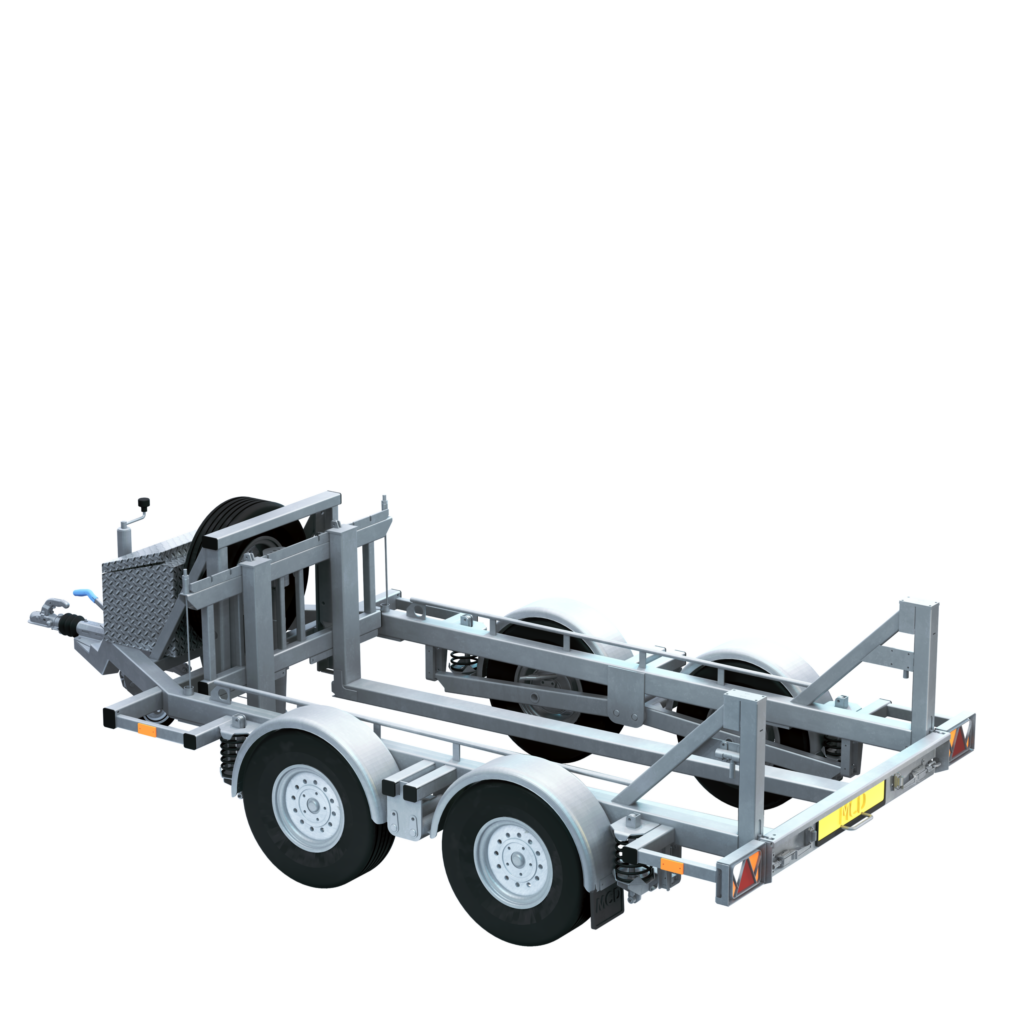

11. T2500 - Bird Eye

Four sites to cover, one van in the yard and a fitter who cannot wait for a flatbed. The TMT-2500 is the twin axle trailer built to move two Mobile Tower Platforms in a single run: 1800 kg of load capacity on a 250 by 125 cm bed, forks that adjust to the slots of the platform, and an electric hydraulic lift that sets a unit on the ground without a forklift or a crane. A CCTV trailer that keeps the fleet moving between sites instead of waiting on transport.

Request a Quote

Built to move platforms, not to stand on site

Two platforms in one run

A 250 by 125 cm bed takes two platforms instead of one, so a rollout across four sites becomes two journeys rather than four. Gross permissible weight is 2500 kg, of which 1800 kg is payload.

Electric hydraulic lift

The bed lowers and lifts on an electric hydraulic system, with forks that slide to the width of the platform. No forklift on site, no crane booked, no second pair of hands waiting in the van.

Twin braked axles, low load bed

Two braked axles rated at 2500 kg, shock absorbers and 155/70R12 wheels. The load sits low, which keeps the combination settled on rough ground and in narrow inner city streets.

Galvanised and certified

A solidly welded, hot dip galvanised chassis with tie hooks and rails fitted as standard. CE and ISO 9001 certified, built in house in the Netherlands alongside the platforms it carries.

What the TMT-2500 carries

The trailer is transport, not a mounting point. Platforms are lifted off and set down on the ground, so nothing stays on wheels once the site is live.

Platforms and payload

Platforms and payload

 Revolutionize security with mobile deploybable CCTV towers

Standard equipment

Download the Trailer Line brochure

Dimensions, load capacities and lifting details for the TMT-750, TMT-1300 and TMT-2500, in one PDF.

  • Technical specifications and dimensions
  • Load capacities across the three trailers
  • Lifting mechanism and standard equipment
Trailer Line Brochure

Choose your loading method

One operator, no forklift needed

Set the forks to the slots of the platform, lower the bed on the electric hydraulic system and drive out from under the load. The same movement in reverse puts the unit back on the trailer at the end of the hire.

Electric hydraulic Lifting mechanism
Adjustable width Forks
650 kg Own weight
155/70R12 Wheels
Loading space
250 x 125 cm
Load capacity
1800 kg
Gross weight
2500 kg
Operators on site
1 Person

Real-world applications

Where one CCTV trailer keeps several sites covered

Two plots covered before lunch

[TE BEVESTIGEN: klantnaam] | Netherlands

Two plots on opposite sides of a city, both handed over the same week. With two platforms on the bed, the fitter drives out once, drops the first unit, tows on and sets the second down without a truck movement in between.

Load capacity
1800 kg
Loading space
250 x 125 cm
Truck needed
None
Set up
1 Operator
Let's talk about your fleet More clients cases

Our products

TMT-1300

Single axle trailer, 925 kg load

MSB6-Premium

6 m mast, heavy duty cabinet

MSB6-Basic Plus

6 m mast with anti climb protection

MSB-Compact

Smallest base, mast to 405 cm
View All Products and Trailers

Receive Personal Advice

Our team of experts is ready to help you find the right solution for your security needs. Fill out the form below and we will get back to you as soon as possible.

Gawain Guedry
Director, North American Sales and Operations

Get in Touch

Have questions about our Mobile Tower Platforms? Our sales team is ready to help you find the perfect solution for your security needs.

Contact our Sales Manager

Ga****@************st.com
+1 702 885 2069

Common questions about the TMT-2500

Load capacity, lifting, dimensions and certification. What installers and rental firms ask before adding a trailer to the fleet.

Load capacity is 1800 kg on a loading space of 250 by 125 cm, which takes two Mobile Tower Platforms in one run. Gross permissible weight is 2500 kg and the trailer itself weighs 650 kg. Check the combined weight of the platforms and the equipment fitted to them before loading.

No. The electric hydraulic lift lowers the bed and the adjustable forks slide to the slots of the platform, so one operator loads and unloads without a forklift, a crane or a flatbed truck. Where a yard forklift is standing anyway, loading from the side works too.

Overall size is 425.7 by 191.8 by 118.3 cm, with a loading space of 250 by 125 cm. Wheels are 155/70R12 and the load sits low, which keeps the combination settled on rough ground and in narrow streets.

CE and ISO 9001 certified. The chassis is solidly welded and hot dip galvanised, with a heavy support wheel, shock absorbers, wheel chocks, tie hooks and rails fitted as standard.

Gross permissible weight is 2500 kg, so the answer depends on the towing vehicle and on the country the combination is registered in. Check the requirements that apply to your combination with the licensing authority in the country of registration.

Every platform in the range fits the bed, from the MSB-Compact through to the MSB-Premium XL, within the 1800 kg limit. Stock is held in the warehouse in the Netherlands, which keeps delivery inside Europe short. Outside Europe, count on eight to ten weeks.

More questions? Reach out
