MSB-Premium XL Mobile Tower Platform
900 cm total height
5 part mast, 120 to 40 mm
60 kg mast top payload
CE, TUV and ISO 9001
MSB-Premium XL Mobile Tower Platform
900 cm total height
5 part mast, 120 to 40 mm
60 kg mast top payload
CE, TUV and ISO 9001
Nine metres changes what one camera can see. A logistics yard, a wind farm access road, a stadium car park: from six metres you cover part of it, from nine you cover the run. The MSB-Premium XL is the Mobile Tower Platform for those sites, with a five part galvanised mast of 120/100/80/60/40 mm, a 502 kg base that stays where you put it, and 60 kg of payload at the top. A CCTV mast that one engineer raises with an 850 kg CE approved winch.
The platform is the foundation. Our partners decide what goes on top of it.
Henk de Haan, CEO @ Telescopic Mast
Download the Premium Line brochure Nine metres changes what one camera can see. A logistics yard, a wind farm access road, a stadium car park: from six metres you cover part of it, from nine you cover the run. The MSB-Premium XL is the Mobile Tower Platform for those sites, with a five part galvanised mast of 120/100/80/60/40 mm, a 502 kg base that stays where you put it, and 60 kg of payload at the top. A CCTV mast that one engineer raises with an 850 kg CE approved winch.
MSB-Premium XL Mobile Tower Platform
Nine metre CCTV mast for large sites
Three metres above the rest of the range
Nine metres of vantage

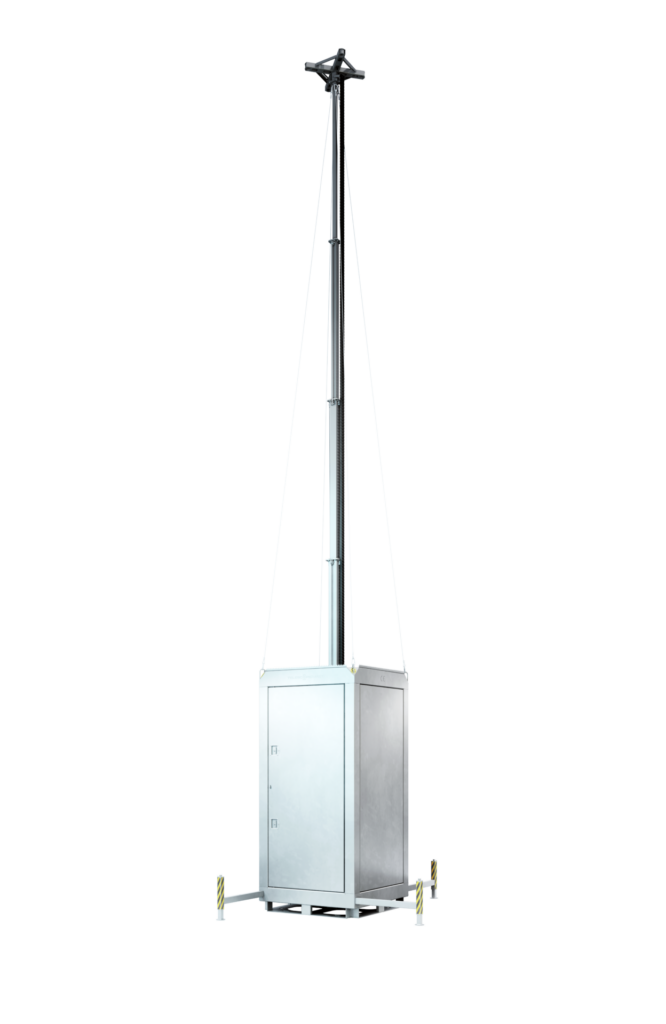

A five part galvanised mast of 120/100/80/60/40 mm reaches 900 cm total height, three metres higher than the MSB6 models. Four cables to the mast head damp the movement that triggers false alarms.
Built to stand still
A 502 kg reinforced ground frame, four extendable stabilisers and a spirit level keep a nine metre mast steady. The automatic safety stop engages as the mast extends.
Room for the whole install
Two lockable doors with dual locking points and two lockable top covers close the cabinet completely. Inside there is space for batteries, fuel cells and electronics, with double cabling running up the mast.
Handled by forklift or crane
Heavy duty forklift slots on all four sides and lifting lugs for crane transport. One engineer raises the mast with the CE approved 850 kg manual winch and its stainless steel cable.
Download the Premium Line brochure
Dimensions, mast data and drawings for the MSB6-Premium and the MSB-Premium XL, in one PDF.
Technical specifications and dimensions- Mast top and cabinet mounting options
- Transport, trailer and lifting details
Choose your deployment method
Forklift slots on all four sides
Heavy duty slots on each side of the base frame. Approach from whichever direction the yard allows, set the unit down, extend the four stabilisers and level it before raising the mast.
Access roads and substations on a wind farm
Turbine bases and substations sit far apart on open ground with nothing to mount a camera on. The extra three metres over the MSB6 models turns a partial view of an access road into a full one.
Stadium and venue perimeters during an event week
Crowd flow around a venue changes by the hour and the useful camera position is rarely where a fixed pole stands. A nine metre mast on a 114 by 114 cm base clears the fencing and the parked coaches, and moves again the following week.
